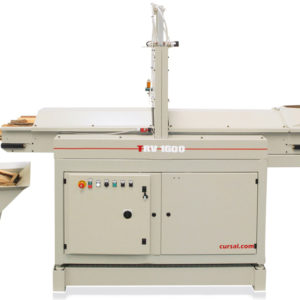

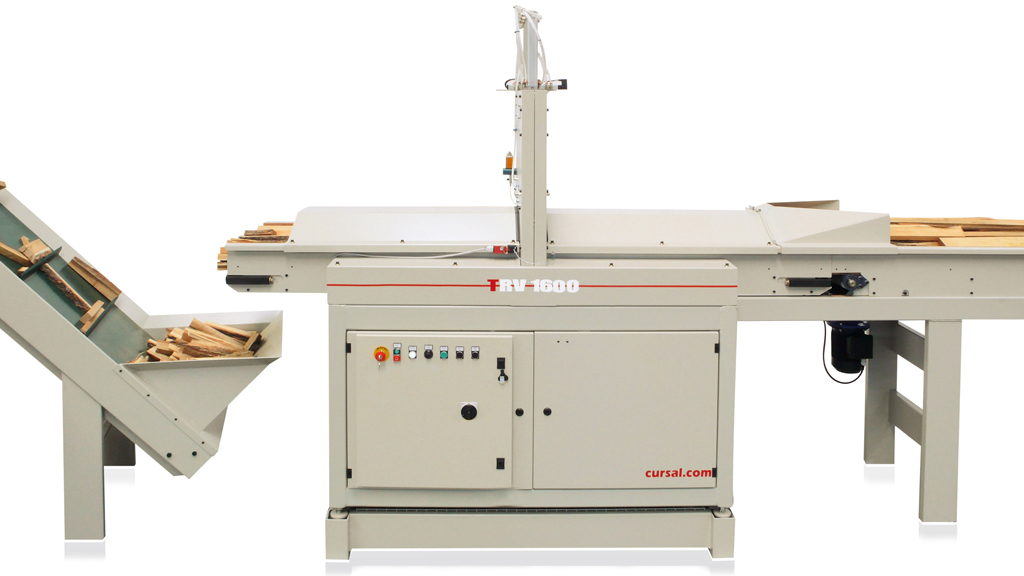

TRV 1600L Ø700
For more information please fill in the form at the following link or chat with us
HOW THE WASTE BECOMES IMMEDIATETLY GAIN
Factotum fast and practice, TRV 1600L Ø700 is used in a lot of fields, that produces basically firewood. The sawmills that must dispose huge quantities of MULTI-COUNTERBORE SHAVINGS, and SIDE OF TRUNKS, discovered on the TRV 1600 the perfect ALLY, to handle all the wastes produced changing them daily in firewood. So, THIS IS THE PROFICT MADE BY THE WASTAGE.
STRENGTH:
– The shavings and wastes are randomly loaded on the tape.

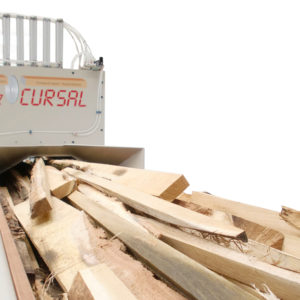

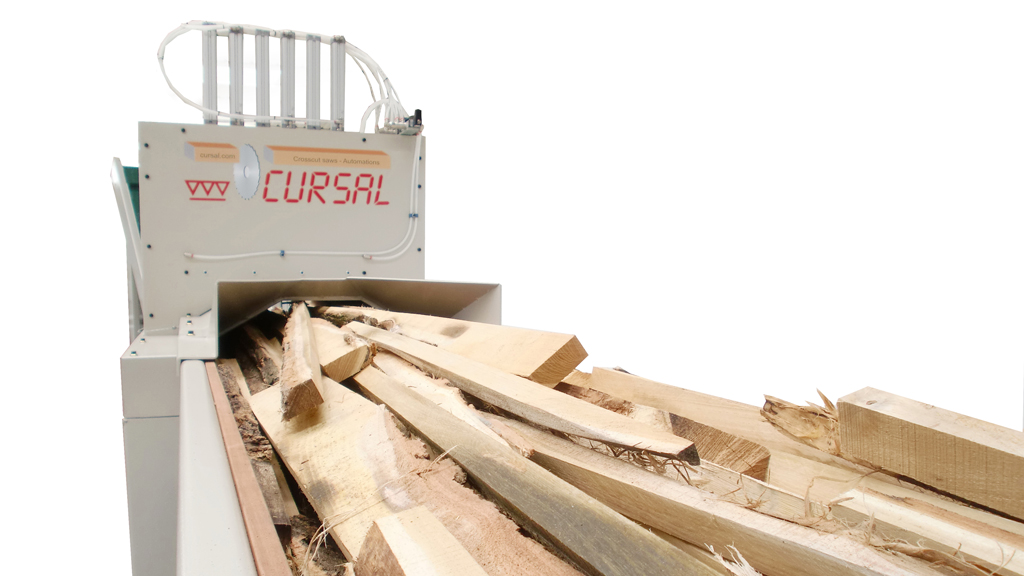

– A clamping system permits to handle overlapped pieces with different shapes.
– Each small clamp (6 TOTAL SECTORS) has an independent pneumatic cylinder with shock absorbers.
– It cuts by a PLC command with a temporary control cutted size pieces.
Security at the first place:
– Access door to parts in motion, that is protected by safety micro switch with forced opening.
– Unique lead covered key, that cannot be copied on the market
– Protection tunnel equipped with safety microswitch with lead covered key, against forced removal
– Blade motor with rapid shutdown (less than 10 sec.)
– Thick casing to protect the blade for total blocking any splinters
– Drop air lubricator it avoids the nebulization of the oil in breathable air.
For the most exigent: with dedicated accessories it can fully exploit the potentials of the TRV 1600L.

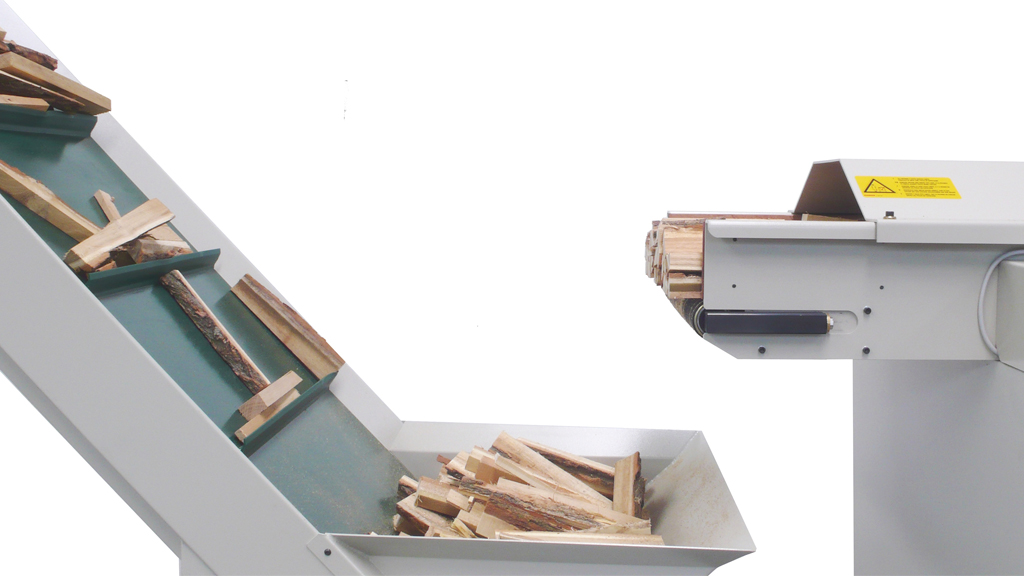

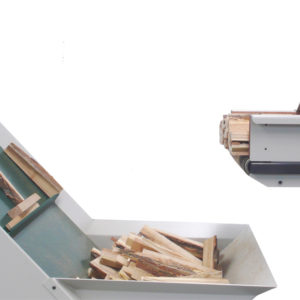

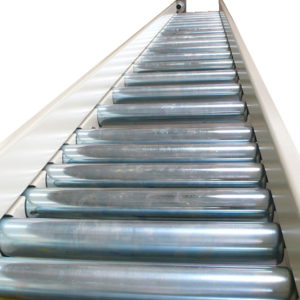

We suggest, in the output, inclined motorized WASTE UNLOAD TAPES – tape COMBINED TRANSFERS with low usury
STANDARD TECHNICAL DATA
| Blade motor | Working height plan | Air consumption | Maximum speed |
|
| (KW) | mm. | nl/min. | mt./min. | |
| TRV 1600L Ø 700 | 11 | 950 ±20 | 520 | 5 ÷ 50 variable |

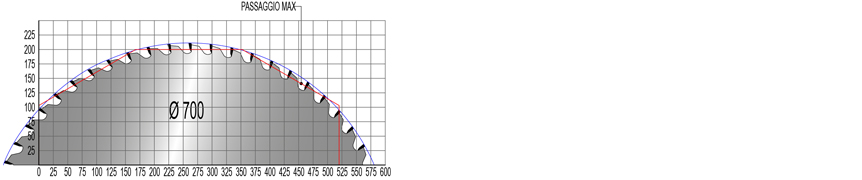

AVAILABLE CUTTING SECTIONS
Some Solutions
Layout
